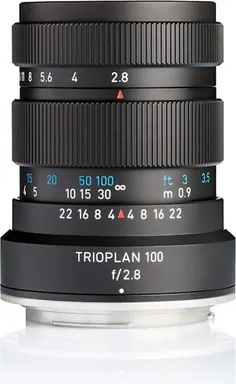

Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II

Leica M-Mount

Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II

Focal length
100 mm
Aperture
f/2.8
Weight
390 g
Filter diameter
52 mm
Min. focus distance
90 cm
Length
115 mm

At a Glance

A manual effect lens for full-frame Leica M cameras, the Trioplan 100mm f/2.8 II pairs a 100 mm focal length with an f/2.8 aperture. Its design has 3 elements in 3 groups. It focuses down to 90 cm and weighs 390 g. Portraits and creative work are its fields.

Good for

  • Creative
  • Portraits

Worth knowing

  • No autofocus: focusing is manual only.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II? Tell us what is wrong.

Min. focal length
100 mm
Max. focal length
100 mm
Max. aperture (min. zoom)
f/2.8
Max. aperture (max. zoom)
f/2.8
Min. aperture
f/22
Elements
3
Groups
3
Weight
390 g (0.86 lb)
Filter diameter
52 mm
Min. focus distance
90 cm (35.43 in)
Length
115 mm (4.53 in)
Diameter
65 mm (2.56 in)

Manufacturer data: meyer-optik-goerlitz.com

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II fit?

The Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II is a full-frame lens for Leica M-Mount cameras. On full-frame bodies it uses the whole sensor; on APS-C Leica M-Mount cameras its field of view equals 150 mm in full-frame terms.

Leica M-Mount cameras

Full frame:
Leica M EV1,Pixii Max,Leica M11-D,Leica M11-P,Leica M11 Monochrom,Leica M11,Leica M10-R,Leica M10 Monochrom,Leica M-E (Typ 240),Leica M10-P,Leica M10-D,Leica M10,Leica M-D (Typ 262),Leica M (Typ 262),Leica M Monochrom (Typ 246),Leica M Edition 60,Leica M-P (Typ 240),Leica M (Typ 240),Leica M-E (Typ 220),Leica M Monochrom (Typ 230),Leica M9-P,Leica M9
APS-C:
Pixii+ (A2572+),Pixii (A2572),Pixii (A1571),Pixii (A1112)

With the Leica M-Adapter L the lens can also be used on Leica L-Mount cameras.

Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II compared

Key specs side by side with the most similar Leica M-Mount lenses.

LensMeyer-Optik Gorlitz Trioplan 100mm f/2.8 IILeica Summarit-M 90mm f/2.5KIPON Iberit 90mm f/2.4Leica Summarit-M 90mm F2.4 ASPH
Focal length100 mm90 mm90 mm90 mm
Max. aperturef/2.8f/2.5f/2.4f/2.4
Weight390 g360 g340 g346 g
Filter diameter52 mm46 mm49 mm46 mm
Min. focus distance90 cm100 cm70 cm90 cm
Length115 mm67 mm79 mm67 mm
Autofocusnononono
Image stabilizationnononono
Open these lenses in the comparison and add more

This lens is also available for

Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II: FAQ

Does the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II have autofocus?

No, the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II has no autofocus; you focus it manually.

Does the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II have image stabilization?

No, the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II weigh?

The Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II weighs 390 g. It is 115 mm long with a diameter of 65 mm.

What filter size does the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II use?

The Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II takes 52 mm screw-in filters.

How close can the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II focus?

The minimum focus distance of the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II is 90 cm, measured from the sensor plane.

Is the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II a full-frame lens?

Yes, the Meyer-Optik Gorlitz Trioplan 100mm f/2.8 II covers full frame. On APS-C cameras its field of view equals 150 mm in full-frame terms.
