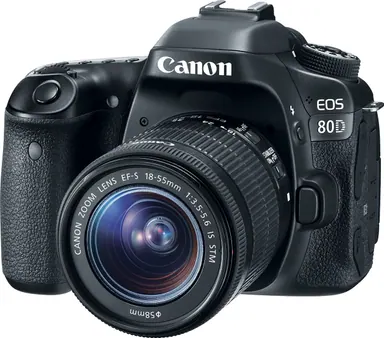

Canon EOS 80D
- Type
- DSLR
- Mount
- Canon EF
- Sensor format
- APS-C
- Resolution
- 24.2 MP
- Released
- March 2016
Predecessor: Canon EOS 70D
Specifications
Sensor and image
- Resolution
- 24.2 MP
- Largest image size
- 6,000 × 4,000 px
- Sensor format
- APS-C
- Sensor size
- 22.3 × 14.9 mm
- Sensor type
- CMOS
- ISO range
- 100 to 16,000
- Extended ISO range
- 100 to 25,600
Autofocus
- AF system
- TTL secondary image-registration, phase-difference detection with the dedicated AF sensor; Dual Pixel CMOS AF in Live View
- AF points
- 45
- AF low-light limit
- -3 EV
Shutter and burst
- Mechanical shutter
- Yes
- Fastest shutter speed, mechanical
- 1/8000 s
- Slowest shutter speed
- 30 s
- Flash sync speed
- 1/250 s
- Burst rate, mechanical
- 7 fps
Video
- Video modes
Resolution Max. frame rate Crop Note Full HD (1,920 × 1,080) 59.94 – MP4 HD (1,280 × 720) 59.94 – MP4
Viewfinder and display
- Viewfinder
- Optical (OVF)
- Viewfinder magnification
- 0.59x
- Viewfinder coverage
- 100%
- Screen
- 3 in, 1.04 million dots
- Touchscreen
- Yes
Body and battery
- Dimensions (W × H × D)
- 139 × 105.2 × 78.5 mm
- Weight with battery and card
- 730 g
- Body-only weight
- 650 g
- Battery
- LP-E6N/LP-E6
- Shots per charge (screen)
- 300 shots
- Shots per charge (viewfinder)
- 960 shots
Storage and connections
- Card slots
- SD/SDHC/SDXC (UHS-I)
- USB
- Hi-Speed USB equivalent
- HDMI
- HDMI mini OUT Type C
- Microphone input
- 3.5 mm stereo mini-jack
- Headphone output
- Headphone terminal
Market and price
- Released
- March 2016
Features stated by the manufacturer
- Built-in flash
- Creative filters
- Electronic level
- HDR movie shooting
- Interval timer
- Multiple exposure
- Time-lapse movie
Manufacturer data: global.canon
Last checked: October 25, 2026 (against the manufacturer data) · How we check
Size and weight
- Width × height × depth
- 139 × 105.2 × 78.5 mm
- Weight with battery and card
- 730 g
- Weight, body only
- 650 g
Manufacturer data: global.canon
The front view is schematic, only width and height are to scale.
