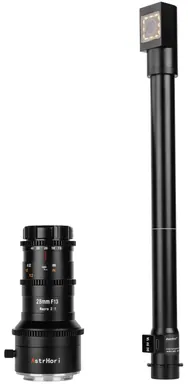

AstrHori 28mm f/13 360° Rotating Macro Probe

Canon EF

AstrHori 28mm f/13 360° Rotating Macro Probe

Focal length
28 mm
Aperture
f/13
Weight
760 g
Filter diameter
–
Min. focus distance
48 cm
Length
470 mm
Check price on Amazon 1

At a Glance

This 28 mm probe for Canon EF covers full frame and has a periscope that turns through 360°. It images up to 2:1, with a minimum focus distance of 48 cm. The f/13 maximum aperture is small. There is no autofocus. The lens is meant for macro, product shots and video.

Good for

  • Macro
  • Product
  • Video

Worth knowing

  • No autofocus: focusing is manual only.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for AstrHori 28mm f/13 360° Rotating Macro Probe? Tell us what is wrong.

Min. focal length
28 mm
Max. focal length
28 mm
Max. aperture (min. zoom)
f/13
Max. aperture (max. zoom)
f/13
Min. aperture
f/40
Elements
21
Groups
16
Weight
760 g (1.68 lb)
Filter diameter
–
Min. focus distance
48 cm (18.9 in)
Max. magnification
2:1 (2×)
Length
470 mm (18.5 in)
Diameter
30 mm (1.18 in)

Manufacturer data: astrhori.cn, astrhori.cn

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the AstrHori 28mm f/13 360° Rotating Macro Probe fit?

The AstrHori 28mm f/13 360° Rotating Macro Probe is a full-frame lens for Canon EF cameras. On full-frame bodies it uses the whole sensor; on APS-C Canon EF cameras its field of view equals 45 mm in full-frame terms.

Canon EF cameras

Full frame:
Canon EOS-1D X Mark III,Canon EOS 6D Mark II,Canon EOS-1D X Mark II,Canon EOS 5D Mark IV,Canon EOS 5Ds,Canon EOS 5Ds R,Canon EOS 5D Mark III,Canon EOS 6D,Canon EOS-1D C,Canon EOS-1D X,Canon EOS 5D Mark II
APS-C:
Canon EOS 850D (Rebel T8i),Canon EOS 90D,Canon EOS 250D (Rebel SL3),Canon EOS 4000D (3000D, Rebel T100),Canon EOS 2000D (1500D, Rebel T7),Canon EOS 800D (Rebel T7i),Canon EOS 77D,Canon EOS 200D (Rebel SL2),Canon EOS 80D,Canon EOS 1300D (Rebel T6),Canon EOS 750D (Rebel T6i),Canon EOS 760D (Rebel T6s),Canon EOS 7D Mark II,Canon EOS 1200D (Rebel T5),Canon EOS 70D,Canon EOS 700D (Rebel T5i),Canon EOS 100D (Rebel SL1),Canon EOS 650D (Rebel T4i),Canon EOS 60Da,Canon EOS 600D (Rebel T3i),Canon EOS 1100D (Rebel T3),Canon EOS 550D (Rebel T2i),Canon EOS 60D,Canon EOS 7D,Canon EOS 500D (Rebel T1i),Canon EOS 50D,Canon EOS 450D (Rebel XSi),Canon EOS 1000D (Rebel XS)

With the Canon Mount Adapter EF-EOS R the lens can also be used on Canon RF cameras.

With the Canon Mount Adapter EF-EOS M the lens can also be used on Canon EF-M cameras.

AstrHori 28mm f/13 360° Rotating Macro Probe compared

Key specs side by side with the most similar Canon EF lenses.

LensAstrHori 28mm f/13 360° Rotating Macro ProbeAstrHori 28mm f/13 90° 2x Macro ProbeAstrHori 28mm f/13 Macro ProbeVenus Laowa 24mm F14 2x Macro Probe
Focal length28 mm28 mm28 mm24 mm
Max. aperturef/13f/13f/13f/14
Weight760 g760 g698 g474 g
Filter diameter––––
Min. focus distance48 cm48 cm48 cm47 cm
Length470 mm470 mm452 mm408 mm
Autofocusnononono
Image stabilizationnononono
Open these lenses in the comparison and add more

This lens is also available for

AstrHori 28mm f/13 360° Rotating Macro Probe: FAQ

Does the AstrHori 28mm f/13 360° Rotating Macro Probe have autofocus?

No, the AstrHori 28mm f/13 360° Rotating Macro Probe has no autofocus; you focus it manually.

Does the AstrHori 28mm f/13 360° Rotating Macro Probe have image stabilization?

No, the AstrHori 28mm f/13 360° Rotating Macro Probe has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the AstrHori 28mm f/13 360° Rotating Macro Probe weigh?

The AstrHori 28mm f/13 360° Rotating Macro Probe weighs 760 g. It is 470 mm long with a diameter of 30 mm.

How close can the AstrHori 28mm f/13 360° Rotating Macro Probe focus?

The minimum focus distance of the AstrHori 28mm f/13 360° Rotating Macro Probe is 48 cm, measured from the sensor plane.

Is the AstrHori 28mm f/13 360° Rotating Macro Probe a full-frame lens?

Yes, the AstrHori 28mm f/13 360° Rotating Macro Probe covers full frame. On APS-C cameras its field of view equals 45 mm in full-frame terms.
