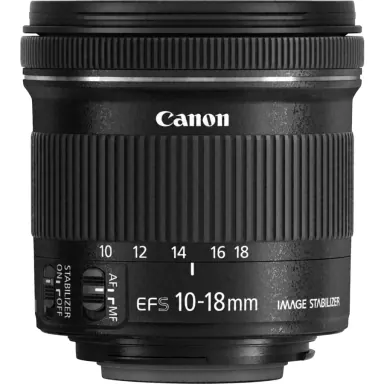

Canon EF-S 10-18mm F4.5–5.6 IS STM

Canon EF Canon Lenses Autofocus OIS

Canon EF-S 10-18mm F4.5–5.6 IS STM

Focal length
10–18 mm
Aperture
f/4.5–5.6
Weight
240 g
Filter diameter
67 mm
Min. focus distance
22 cm
Length
72 mm

Prices

At a Glance

This ultra-wide zoom is made for APS-C cameras on the Canon EF mount, with a focal range equal to 16-29 mm on full frame. That gives a very wide field of view. It weighs 240 g and is compact, with an optical stabilizer included. The minimum focus distance is 22 cm. It suits landscapes, architecture, interiors and travel.

Good for

  • Landscape
  • Architecture
  • Interiors
  • Travel

Worth knowing

  • Designed for APS-C: only usable on EOS cameras with an APS-C sensor.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Min. focal length
10 mm
Max. focal length
18 mm
Max. aperture (min. zoom)
f/4.5
Max. aperture (max. zoom)
f/5.6
Min. aperture
f/22
Elements
14
Groups
11
Weight
240 g (0.53 lb)
Filter diameter
67 mm
Min. focus distance
22 cm (8.66 in)
Length
72 mm (2.83 in)
Diameter
75 mm (2.95 in)
Released
May 2014

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Compare size

Which cameras does the Canon EF-S 10-18mm F4.5–5.6 IS STM fit?

The Canon EF-S 10-18mm F4.5–5.6 IS STM is made for Canon APS-C cameras, where its field of view equals 16-29 mm in full-frame terms. It is not meant for full-frame EOS bodies: EF-S lenses do not mount on them at all, and third-party APS-C lenses vignette heavily.

Canon EF cameras

With the Canon Mount Adapter EF-EOS R the lens can also be used on Canon RF cameras.

With the Canon Mount Adapter EF-EOS M the lens can also be used on Canon EF-M cameras.

Canon EF-S 10-18mm F4.5–5.6 IS STM compared

Key specs side by side with the most similar Canon EF lenses.

LensCanon EF-S 10-18mm F4.5–5.6 IS STMTamron SP AF 11-18mm F/4.5-5.6 Di II LD Aspherical (IF)Sigma 10-20mm F4-5.6 EX DC HSMTokina AT-X 10-17mm f/3.5-4.5 DX Fish-eye
Focal length10-18 mm11-18 mm10-20 mm10-17 mm
Max. aperturef/4.5-5.6f/4.5-5.6f/4-5.6f/3.5-4.5
Weight240 g355 g465 g350 g
Filter diameter67 mm77 mm77 mm–
Min. focus distance22 cm25 cm24 cm14 cm
Length72 mm79 mm81 mm71 mm
Autofocusyesyesyesyes
Image stabilizationyesnonono

Open these lenses in the comparison and add more Compare the size of these lenses

Comparisons with this lens

Canon EF-S 10-18mm F4.5–5.6 IS STM: FAQ

Does the Canon EF-S 10-18mm F4.5–5.6 IS STM have autofocus?

Yes, the Canon EF-S 10-18mm F4.5–5.6 IS STM has autofocus.

Does the Canon EF-S 10-18mm F4.5–5.6 IS STM have image stabilization?

Yes, the Canon EF-S 10-18mm F4.5–5.6 IS STM has optical image stabilization.

How much does the Canon EF-S 10-18mm F4.5–5.6 IS STM weigh?

The Canon EF-S 10-18mm F4.5–5.6 IS STM weighs 240 g. It is 72 mm long with a diameter of 75 mm.

What filter size does the Canon EF-S 10-18mm F4.5–5.6 IS STM use?

The Canon EF-S 10-18mm F4.5–5.6 IS STM takes 67 mm screw-in filters.

How close can the Canon EF-S 10-18mm F4.5–5.6 IS STM focus?

The minimum focus distance of the Canon EF-S 10-18mm F4.5–5.6 IS STM is 22 cm, measured from the sensor plane.

Is the Canon EF-S 10-18mm F4.5–5.6 IS STM a full-frame lens?

No, the Canon EF-S 10-18mm F4.5–5.6 IS STM is an APS-C lens. On APS-C cameras its field of view equals 16-29 mm in full-frame terms.
