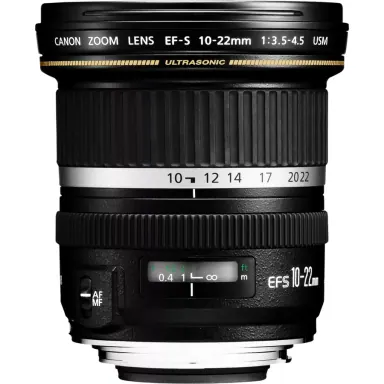

Canon EF-S 10-22mm F3.5-4.5 USM

Canon EF Autofocus

Canon EF-S 10-22mm F3.5-4.5 USM

Focal length
10–22 mm
Aperture
f/3.5–4.5
Weight
385 g
Filter diameter
77 mm
Min. focus distance
24 cm
Length
89.8 mm
Check price on Amazon 1

At a Glance

The Canon EF-S 10-22mm F3.5-4.5 USM is an ultra-wide zoom for Canon EF cameras with an APS-C sensor. Its 10-22 mm range corresponds to 16-35 mm on full frame. It weighs 385 g, and autofocus uses a USM motor. A 24 cm minimum focus distance gives 1:5.88. It is meant for landscapes, architecture and interiors.

Good for

  • Landscape
  • Architecture
  • Interiors

Worth knowing

  • Designed for APS-C: only usable on EOS cameras with an APS-C sensor.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for Canon EF-S 10-22mm F3.5-4.5 USM? Tell us what is wrong.

Min. focal length
10 mm
Max. focal length
22 mm
Max. aperture (min. zoom)
f/3.5
Max. aperture (max. zoom)
f/4.5
Min. aperture
f/22
Elements
13
Groups
10
Weight
385 g (0.85 lb)
Filter diameter
77 mm
Min. focus distance
24 cm (entire zoom range)
Max. magnification
1:5.9 (0.17×)
Length
89.8 mm (3.54 in)
Diameter
83.5 mm (3.29 in)
Released
November 2004

Manufacturer data: global.canon

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the Canon EF-S 10-22mm F3.5-4.5 USM fit?

The Canon EF-S 10-22mm F3.5-4.5 USM is made for Canon APS-C cameras, where its field of view equals 16-35 mm in full-frame terms. It is not meant for full-frame EOS bodies: EF-S lenses do not mount on them at all, and third-party APS-C lenses vignette heavily.

Canon EF cameras

APS-C:
Canon EOS 850D (Rebel T8i),Canon EOS 90D,Canon EOS 250D (Rebel SL3),Canon EOS 4000D (3000D, Rebel T100),Canon EOS 2000D (1500D, Rebel T7),Canon EOS 800D (Rebel T7i),Canon EOS 77D,Canon EOS 200D (Rebel SL2),Canon EOS 80D,Canon EOS 1300D (Rebel T6),Canon EOS 750D (Rebel T6i),Canon EOS 760D (Rebel T6s),Canon EOS 7D Mark II,Canon EOS 1200D (Rebel T5),Canon EOS 70D,Canon EOS 700D (Rebel T5i),Canon EOS 100D (Rebel SL1),Canon EOS 650D (Rebel T4i),Canon EOS 60Da,Canon EOS 600D (Rebel T3i),Canon EOS 1100D (Rebel T3),Canon EOS 550D (Rebel T2i),Canon EOS 60D,Canon EOS 7D,Canon EOS 500D (Rebel T1i),Canon EOS 50D,Canon EOS 450D (Rebel XSi),Canon EOS 1000D (Rebel XS)

With the Canon Mount Adapter EF-EOS R the lens can also be used on Canon RF cameras.

With the Canon Mount Adapter EF-EOS M the lens can also be used on Canon EF-M cameras.

Canon EF-S 10-22mm F3.5-4.5 USM compared

Key specs side by side with the most similar Canon EF lenses.

LensCanon EF-S 10-22mm F3.5-4.5 USMTamron 10-24mm F3.5-4.5 Di II VC HLDTamron SP AF 10-24mm F/3.5-4.5 Di II LD Aspherical (IF)Sigma 10-20mm F3.5 EX DC HSM
Focal length10-22 mm10-24 mm10-24 mm10-20 mm
Max. aperturef/3.5-4.5f/3.5-4.5f/3.5-4.5f/3.5
Weight385 g440 g406 g520 g
Filter diameter77 mm77 mm77 mm82 mm
Min. focus distance24 cm24 cm24 cm24 cm
Length89.8 mm84.6 mm84 mm88.2 mm
Autofocusyesyesyesyes
Image stabilizationnoyesnono
Open these lenses in the comparison and add more

Comparisons with this lens

Canon EF-S 10-22mm F3.5-4.5 USM: FAQ

Does the Canon EF-S 10-22mm F3.5-4.5 USM have autofocus?

Yes, the Canon EF-S 10-22mm F3.5-4.5 USM has autofocus.

Does the Canon EF-S 10-22mm F3.5-4.5 USM have image stabilization?

No, the Canon EF-S 10-22mm F3.5-4.5 USM has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the Canon EF-S 10-22mm F3.5-4.5 USM weigh?

The Canon EF-S 10-22mm F3.5-4.5 USM weighs 385 g. It is 89.8 mm long with a diameter of 83.5 mm.

What filter size does the Canon EF-S 10-22mm F3.5-4.5 USM use?

The Canon EF-S 10-22mm F3.5-4.5 USM takes 77 mm screw-in filters.

How close can the Canon EF-S 10-22mm F3.5-4.5 USM focus?

The minimum focus distance of the Canon EF-S 10-22mm F3.5-4.5 USM is 24 cm, measured from the sensor plane.

Is the Canon EF-S 10-22mm F3.5-4.5 USM a full-frame lens?

No, the Canon EF-S 10-22mm F3.5-4.5 USM is an APS-C lens. On APS-C cameras its field of view equals 16-35 mm in full-frame terms.
