Panasonic S 18-40mm F4.5-6.3

Leica L-Mount Autofocus

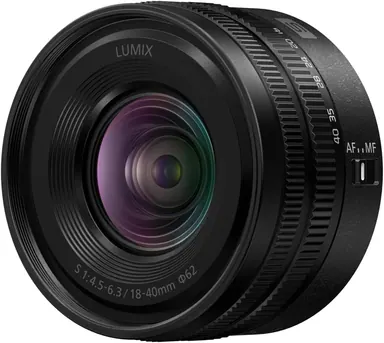

Panasonic S 18-40mm F4.5-6.3

Focal length
18–40 mm
Aperture
f/4.5–6.3
Weight
155 g
Filter diameter
62 mm
Min. focus distance
15 cm
Length
40.9 mm
Check price on Amazon 1

At a Glance

This collapsible wide-angle zoom for full frame L-Mount covers 18-40 mm and weighs only 155 g, so it is compact. It is weather sealed and focuses down to 15 cm, giving a magnification of 1:3.57. The aperture drops to f/6.3 at the long end. It is a light lens for everyday shooting, travel and video.

Good for

  • Everyday
  • Travel
  • Video

Worth knowing

  • Only f/6.3 at the long end: in low light, ISO or shutter time go up.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for Panasonic S 18-40mm F4.5-6.3? Tell us what is wrong.

Min. focal length
18 mm
Max. focal length
40 mm
Max. aperture (min. zoom)
f/4.5
Max. aperture (max. zoom)
f/6.3
Min. aperture
f/22
Elements
8
Groups
7
Weight
155 g (0.34 lb)
Filter diameter
62 mm
Min. focus distance
15 cm at 18 mm · 15 cm at 21 mm · 35 cm at 40 mm
Max. magnification
1:3.6 (0.28×)
Length
40.9 mm (1.61 in)
Diameter
67.9 mm (2.67 in)
Released
November 2024

Manufacturer data: help.na.panasonic.com, na.panasonic.com

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the Panasonic S 18-40mm F4.5-6.3 fit?

The Panasonic S 18-40mm F4.5-6.3 is a full-frame lens for L-Mount cameras. On full-frame bodies it uses the whole sensor; on APS-C L-Mount cameras its field of view equals 27-60 mm in full-frame terms.

L-Mount cameras

Full frame:
Leica SL3-P,Leica SL3-S,Sigma BF,Panasonic Lumix S1II,Panasonic Lumix S1IIE,Panasonic Lumix S1RII,Leica SL3,Panasonic Lumix S9,Blackmagic PYXIS 6K,Panasonic Lumix S5II,Panasonic Lumix S5IIX,Blackmagic Cinema Camera 6K,Panasonic Lumix BS1H,Leica SL2-S,Panasonic Lumix S5,Sigma fp L,Leica SL2,Panasonic Lumix S1,Panasonic Lumix S1R,Panasonic Lumix S1H,Sigma fp,Leica SL (Typ 601)
APS-C:
Leica CL,Leica TL2,Leica TL,Leica T (Typ 701)

Panasonic S 18-40mm F4.5-6.3 compared

Key specs side by side with the most similar L-Mount lenses.

LensPanasonic S 18-40mm F4.5-6.3Panasonic Lumix S PRO 16-35mm f/4Leica Super-Vario-Elmar-SL 16-35mm F3.5-4.5 ASPHPanasonic Lumix S 20-60mm F3.5-5.6
Focal length18-40 mm16-35 mm16-35 mm20-60 mm
Max. aperturef/4.5-6.3f/4f/3.5-4.5f/3.5-5.6
Weight155 g500 g990 g350 g
Filter diameter62 mm77 mm82 mm67 mm
Min. focus distance15 cm25 cm25 cm15 cm
Length40.9 mm99.6 mm123 mm87.2 mm
Autofocusyesyesyesyes
Image stabilizationnononono
Open these lenses in the comparison and add more

Comparisons with this lens

Panasonic S 18-40mm F4.5-6.3: FAQ

Does the Panasonic S 18-40mm F4.5-6.3 have autofocus?

Yes, the Panasonic S 18-40mm F4.5-6.3 has autofocus.

Does the Panasonic S 18-40mm F4.5-6.3 have image stabilization?

No, the Panasonic S 18-40mm F4.5-6.3 has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the Panasonic S 18-40mm F4.5-6.3 weigh?

The Panasonic S 18-40mm F4.5-6.3 weighs 155 g. It is 40.9 mm long with a diameter of 67.9 mm.

What filter size does the Panasonic S 18-40mm F4.5-6.3 use?

The Panasonic S 18-40mm F4.5-6.3 takes 62 mm screw-in filters.

How close can the Panasonic S 18-40mm F4.5-6.3 focus?

The minimum focus distance of the Panasonic S 18-40mm F4.5-6.3 is 15 cm, measured from the sensor plane.

Is the Panasonic S 18-40mm F4.5-6.3 a full-frame lens?

Yes, the Panasonic S 18-40mm F4.5-6.3 covers full frame. On APS-C cameras its field of view equals 27-60 mm in full-frame terms.
