Canon EF Autofocus OIS

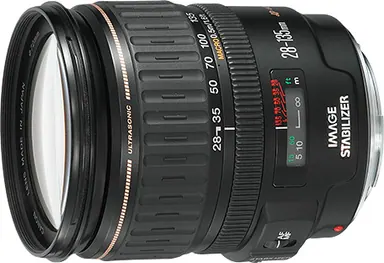

Canon EF 28-135mm F3.5-5.6 IS USM

Focal length: 28–135 mm
Aperture: f/3.5–5.6
Weight: 549 g
Filter diameter: 72 mm
Min. focus distance: 50 cm
Length: 97 mm

At a Glance

An optical stabilizer sets this standard zoom apart for full frame Canon EF cameras. Its 28-135 mm range runs from wide angle into the medium telephoto range, with the aperture going from f/3.5 to f/5.6. The lens weighs 549 g and reaches a magnification of 1:5.26 (0.19x). It is aimed at everyday use and travel.

Good for

Everyday
Travel

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Min. focal length: 28 mm
Max. focal length: 135 mm
Max. aperture (min. zoom): f/3.5
Max. aperture (max. zoom): f/5.6
Min. aperture: f/22
Elements: 16
Groups: 12
Weight: 549 g (1.21 lb)
Filter diameter: 72 mm
Min. focus distance: 50 cm (19.69 in)
Max. magnification: 1:5.3 (0.19×)
Length: 97 mm (3.82 in)
Diameter: 78 mm (3.07 in)
Released: February 1998

Manufacturer data: global.canon

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the Canon EF 28-135mm F3.5-5.6 IS USM fit?

The Canon EF 28-135mm F3.5-5.6 IS USM is a full-frame lens for Canon EF cameras. On full-frame bodies it uses the whole sensor; on APS-C Canon EF cameras its field of view equals 45-216 mm in full-frame terms.

Canon EF cameras

Full frame:: Canon EOS-1D X Mark III,Canon EOS 6D Mark II,Canon EOS-1D X Mark II,Canon EOS 5D Mark IV,Canon EOS 5Ds,Canon EOS 5Ds R,Canon EOS 5D Mark III,Canon EOS 6D,Canon EOS-1D C,Canon EOS-1D X,Canon EOS 5D Mark II
APS-C:: Canon EOS 850D (Rebel T8i),Canon EOS 90D,Canon EOS 250D (Rebel SL3),Canon EOS 4000D (3000D, Rebel T100),Canon EOS 2000D (1500D, Rebel T7),Canon EOS 800D (Rebel T7i),Canon EOS 77D,Canon EOS 200D (Rebel SL2),Canon EOS 80D,Canon EOS 1300D (Rebel T6),Canon EOS 750D (Rebel T6i),Canon EOS 760D (Rebel T6s),Canon EOS 7D Mark II,Canon EOS 1200D (Rebel T5),Canon EOS 70D,Canon EOS 700D (Rebel T5i),Canon EOS 100D (Rebel SL1),Canon EOS 650D (Rebel T4i),Canon EOS 60Da,Canon EOS 600D (Rebel T3i),Canon EOS 1100D (Rebel T3),Canon EOS 550D (Rebel T2i),Canon EOS 60D,Canon EOS 7D,Canon EOS 500D (Rebel T1i),Canon EOS 50D,Canon EOS 450D (Rebel XSi),Canon EOS 1000D (Rebel XS)

With the Canon Mount Adapter EF-EOS R the lens can also be used on Canon RF cameras.

With the Canon Mount Adapter EF-EOS M the lens can also be used on Canon EF-M cameras.
