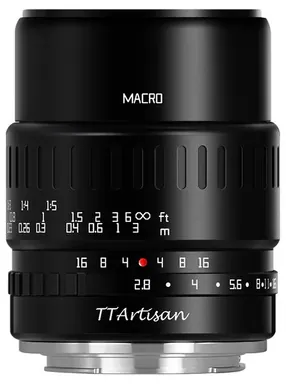

TTArtisan 40mm f/2.8 Macro

Focal length: 40 mm
Aperture: f/2.8
Weight: 371 g
Filter diameter: 52 mm
Min. focus distance: 17 cm
Length: 76 mm

At a Glance

The 40 mm f/2.8 Macro for Fujifilm X-Mount allows 1:1 magnification and a minimum focus distance of 17 cm. On APS-C it corresponds to 60 mm on full frame. The lens fits macro, product shots, everyday shooting and street. It is focused manually.

Good for

Macro
Product
Everyday
Street

Worth knowing

No autofocus: focusing is manual only.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Min. focal length: 40 mm
Max. focal length: 40 mm
Max. aperture (min. zoom): f/2.8
Max. aperture (max. zoom): f/2.8
Min. aperture: f/16
Elements: 8
Groups: 7
Weight: 371 g (0.82 lb)
Filter diameter: 52 mm
Min. focus distance: 17 cm (6.69 in)
Max. magnification: 1:1 (1×)
Length: 76 mm (2.99 in)
Diameter: 62 mm (2.44 in)

Manufacturer data: ttartisan.com

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the TTArtisan 40mm f/2.8 Macro fit?

The TTArtisan 40mm f/2.8 Macro fits all Fujifilm X-Mount cameras. There its field of view equals 60 mm in full-frame terms (crop factor 1.5).

Fujifilm X-Mount cameras

APS-C:: Fujifilm X-T30 III,Fujifilm X-E5,Fujifilm X-M5,Fujifilm X-T50,Fujifilm X-S20,Fujifilm X-T5,Fujifilm X-H2,Fujifilm X-H2S,Fujifilm X-T30 II,Fujifilm X-E4,Fujifilm X-S10,Fujifilm X-T4,Fujifilm X-T200,Fujifilm X-Pro3,Fujifilm X-A7,Fujifilm X-T30,Fujifilm X-T3,Fujifilm X-T100,Fujifilm X-H1,Fujifilm X-A5,Fujifilm X-E3,Fujifilm X-T20,Fujifilm X-A10,Fujifilm X-A3,Fujifilm X-T2,Fujifilm X-E2S,Fujifilm X-Pro2,Fujifilm X-T1 IR,Fujifilm X-T10,Fujifilm X-A2,Fujifilm X-T1,Fujifilm X-E2,Fujifilm X-A1,Fujifilm X-M1,Fujifilm X-E1,Fujifilm X-Pro1
