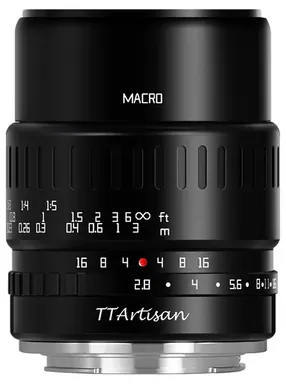

TTArtisan 40mm f/2.8 Macro

Micro Four Thirds (MFT/M43)

TTArtisan 40mm f/2.8 Macro

Focal length
40 mm
Aperture
f/2.8
Weight
371 g
Filter diameter
52 mm
Min. focus distance
17 cm
Length
76 mm
Check price on Amazon 1

At a Glance

This macro lens for Micro Four Thirds reproduces at 1:1 and focuses down to 17 cm. Its 40 mm focal length equals 80 mm on full frame, at a maximum aperture of f/2.8. It suits macro, product shots and portraits. Focusing is manual.

Good for

  • Macro
  • Product
  • Portraits

Worth knowing

  • No autofocus: focusing is manual only.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for TTArtisan 40mm f/2.8 Macro? Tell us what is wrong.

Min. focal length
40 mm
Max. focal length
40 mm
Max. aperture (min. zoom)
f/2.8
Max. aperture (max. zoom)
f/2.8
Min. aperture
f/16
Elements
8
Groups
7
Weight
371 g (0.82 lb)
Filter diameter
52 mm
Min. focus distance
17 cm (6.69 in)
Max. magnification
1:1 (1×)
Length
76 mm (2.99 in)
Diameter
62 mm (2.44 in)

Manufacturer data: ttartisan.com

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the TTArtisan 40mm f/2.8 Macro fit?

The TTArtisan 40mm f/2.8 Macro fits all Micro Four Thirds cameras. There its field of view equals 80 mm in full-frame terms (crop factor 2).

Micro Four Thirds cameras

Micro Four Thirds:
OM System PEN,OM System OM-3,OM System OM-5 Mark II,Panasonic Lumix G97 (G99M2),Panasonic Lumix GH7,OM System OM-1 Mark II,Panasonic Lumix G9 II,Panasonic Lumix G100D,OM System OM-5,OM System OM-1,Panasonic Lumix GH6,Panasonic Lumix GH5 II,Olympus PEN E-P7,Olympus OM-D E-M10 Mark IV,Olympus OM-D E-M1 Mark III,Panasonic Lumix G100 (G110),Panasonic Lumix BGH1,Olympus PEN E-PL10,Olympus OM-D E-M5 Mark III,Panasonic Lumix G95 (G90, G91),Olympus OM-D E-M1X,Panasonic Lumix GX9,Panasonic Lumix GF10 (GF90, GX880),Olympus PEN E-PL9,Panasonic Lumix GH5S,Blackmagic Pocket Cinema Camera 4K,Panasonic Lumix G9,Olympus OM-D E-M10 Mark III (Mark III S),Panasonic Lumix GF9 (GX850, GX800),Panasonic Lumix GH5,Olympus PEN E-PL8,Olympus OM-D E-M1 Mark II,Panasonic Lumix G85 (G80, G81),Panasonic Lumix GX85 (GX80, GX7 Mark II),Olympus PEN-F,Olympus OM-D E-M10 Mark II,Panasonic Lumix GX8,Panasonic Lumix G7,Panasonic Lumix GF7,Olympus Air A01,Olympus OM-D E-M5 Mark II,Panasonic Lumix GM5,Olympus PEN E-PL7,Panasonic Lumix GH4,Olympus OM-D E-M10,Panasonic Lumix GM1,Olympus OM-D E-M1,Panasonic Lumix GX7,Olympus PEN E-PL6,Olympus PEN E-P5,Panasonic Lumix G6,Panasonic Lumix GF6,Blackmagic Pocket Cinema Camera,Olympus PEN E-PM2,Olympus PEN E-PL5,Panasonic Lumix GH3,Panasonic Lumix G5,Panasonic Lumix GF5,Olympus OM-D E-M5,Blackmagic Cinema Camera (MFT),Panasonic Lumix GX1,Olympus PEN E-PM1,Olympus PEN E-PL3,Olympus PEN E-P3,Panasonic Lumix GF3,Panasonic Lumix G3,Olympus PEN E-PL2,Panasonic Lumix GF2,Panasonic Lumix GH2,Panasonic Lumix G2,Panasonic Lumix G10,Olympus PEN E-PL1 (E-PL1s),Olympus PEN E-P2,Panasonic Lumix GF1,Olympus PEN E-P1,Panasonic Lumix GH1,Panasonic Lumix G1

TTArtisan 40mm f/2.8 Macro compared

Key specs side by side with the most similar Micro Four Thirds lenses.

LensTTArtisan 40mm f/2.8 MacroVenus Laowa Aksen 45mm F2.8 1-5X Ultra Macro APOMeyer-Optik Gorlitz Trioplan 35mm f/2.8 IIPanasonic Leica DG Macro-Elmarit 45mm F2.8 ASPH OIS
Focal length40 mm45 mm35 mm45 mm
Max. aperturef/2.8f/2.8f/2.8f/2.8
Weight371 g599 g300 g225 g
Filter diameter52 mm–52 mm46 mm
Min. focus distance17 cm–20 cm15 cm
Length76 mm121 mm78 mm62.5 mm
Autofocusnononoyes
Image stabilizationnononoyes
Open these lenses in the comparison and add more

This lens is also available for

TTArtisan 40mm f/2.8 Macro: FAQ

Does the TTArtisan 40mm f/2.8 Macro have autofocus?

No, the TTArtisan 40mm f/2.8 Macro has no autofocus; you focus it manually.

Does the TTArtisan 40mm f/2.8 Macro have image stabilization?

No, the TTArtisan 40mm f/2.8 Macro has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the TTArtisan 40mm f/2.8 Macro weigh?

The TTArtisan 40mm f/2.8 Macro weighs 371 g. It is 76 mm long with a diameter of 62 mm.

What filter size does the TTArtisan 40mm f/2.8 Macro use?

The TTArtisan 40mm f/2.8 Macro takes 52 mm screw-in filters.

How close can the TTArtisan 40mm f/2.8 Macro focus?

The minimum focus distance of the TTArtisan 40mm f/2.8 Macro is 17 cm, measured from the sensor plane.
