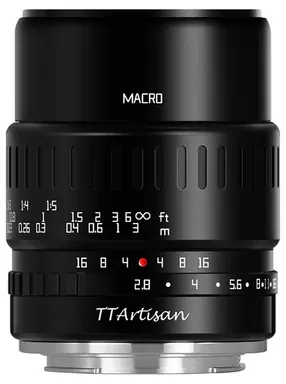

TTArtisan 40mm f/2.8 Macro

Canon EF-M

TTArtisan 40mm f/2.8 Macro

Focal length
40 mm
Aperture
f/2.8
Weight
371 g
Filter diameter
52 mm
Min. focus distance
17 cm
Length
76 mm
Check price on Amazon 1

At a Glance

The 40 mm f/2.8 Macro for Canon EF-M reaches 1:1 magnification at a minimum focus distance of 17 cm. On APS-C its focal length equals 64 mm on full frame. It is aimed at macro and product photography. Focusing is exclusively manual.

Good for

  • Macro
  • Product

Worth knowing

  • No autofocus: focusing is manual only.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for TTArtisan 40mm f/2.8 Macro? Tell us what is wrong.

Min. focal length
40 mm
Max. focal length
40 mm
Max. aperture (min. zoom)
f/2.8
Max. aperture (max. zoom)
f/2.8
Min. aperture
f/16
Elements
8
Groups
7
Weight
371 g (0.82 lb)
Filter diameter
52 mm
Min. focus distance
17 cm (6.69 in)
Max. magnification
1:1 (1×)
Length
76 mm (2.99 in)
Diameter
62 mm (2.44 in)

Manufacturer data: ttartisan.com

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the TTArtisan 40mm f/2.8 Macro fit?

The TTArtisan 40mm f/2.8 Macro fits all Canon EF-M cameras. There its field of view equals 64 mm in full-frame terms (crop factor 1.6).

Canon EF-M cameras

APS-C:
Canon EOS M50 Mark II,Canon EOS M6 Mark II,Canon EOS M200,Canon EOS M50,Canon EOS M100,Canon EOS M6,Canon EOS M5,Canon EOS M10,Canon EOS M3,Canon EOS M2,Canon EOS M

TTArtisan 40mm f/2.8 Macro compared

Key specs side by side with the most similar Canon EF-M lenses.

LensTTArtisan 40mm f/2.8 Macro7artisans 35mm F2KIPON Ibelux 40mm f/0.85 Mark IIITTArtisan 35mm f/1.4
Focal length40 mm35 mm40 mm35 mm
Max. aperturef/2.8f/2f/0.85f/1.4
Weight371 g320 g1,150 g180 g
Filter diameter52 mm43 mm67 mm39 mm
Min. focus distance17 cm35 cm75 cm28 cm
Length76 mm41 mm128 mm44 mm
Autofocusnononono
Image stabilizationnononono
Open these lenses in the comparison and add more

This lens is also available for

TTArtisan 40mm f/2.8 Macro: FAQ

Does the TTArtisan 40mm f/2.8 Macro have autofocus?

No, the TTArtisan 40mm f/2.8 Macro has no autofocus; you focus it manually.

Does the TTArtisan 40mm f/2.8 Macro have image stabilization?

No, the TTArtisan 40mm f/2.8 Macro has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the TTArtisan 40mm f/2.8 Macro weigh?

The TTArtisan 40mm f/2.8 Macro weighs 371 g. It is 76 mm long with a diameter of 62 mm.

What filter size does the TTArtisan 40mm f/2.8 Macro use?

The TTArtisan 40mm f/2.8 Macro takes 52 mm screw-in filters.

How close can the TTArtisan 40mm f/2.8 Macro focus?

The minimum focus distance of the TTArtisan 40mm f/2.8 Macro is 17 cm, measured from the sensor plane.
