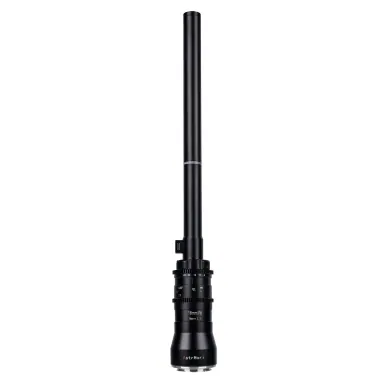

AstrHori 18mm f/8 Macro Probe

Leica L-Mount

AstrHori 18mm f/8 Macro Probe

Focal length
18 mm
Aperture
f/8
Weight
698 g
Filter diameter
–
Min. focus distance
47 cm
Length
458 mm
Check price on Amazon 1

At a Glance

Built as a macro probe for APS-C on L-Mount, this 18 mm prime has a full-frame equivalent of 27 mm. It reaches a magnification of 2:1 with a minimum focus distance of 47 cm and a maximum aperture of f/8. The barrel is 458 mm long and 60 mm in diameter, and the weight is 698 g. Focusing is manual. It fits macro, product and video work.

Good for

  • Macro
  • Product
  • Video

Worth knowing

  • APS-C image circle: on full-frame cameras only usable in crop mode, at reduced resolution.
  • No autofocus: focusing is manual only.

Derived from the manufacturer data, not from our own tests. How we check

Technical Specifications

Report an error

Is a value wrong or missing for AstrHori 18mm f/8 Macro Probe? Tell us what is wrong.

Min. focal length
18 mm
Max. focal length
18 mm
Max. aperture (min. zoom)
f/8
Max. aperture (max. zoom)
f/8
Min. aperture
f/28
Elements
23
Groups
17
Weight
698 g (1.54 lb)
Filter diameter
–
Min. focus distance
47 cm (18.5 in)
Max. magnification
2:1 (2×)
Length
458 mm (18.03 in)
Diameter
60 mm (2.36 in)

Manufacturer data: astrhori.cn

Last checked: October 13, 2026 (against the manufacturer data) · How we check

Simulate depth of field and angle of view

Compare with other lenses

Which cameras does the AstrHori 18mm f/8 Macro Probe fit?

The AstrHori 18mm f/8 Macro Probe is designed for APS-C sensors. On APS-C L-Mount cameras its field of view equals 27 mm in full-frame terms. Full-frame bodies use it in APS-C (crop) mode, recording only part of the sensor and fewer megapixels.

L-Mount cameras

Full frame (in APS-C mode):
Leica SL3-P,Leica SL3-S,Sigma BF,Panasonic Lumix S1II,Panasonic Lumix S1IIE,Panasonic Lumix S1RII,Leica SL3,Panasonic Lumix S9,Blackmagic PYXIS 6K,Panasonic Lumix S5II,Panasonic Lumix S5IIX,Blackmagic Cinema Camera 6K,Panasonic Lumix BS1H,Leica SL2-S,Panasonic Lumix S5,Sigma fp L,Leica SL2,Panasonic Lumix S1,Panasonic Lumix S1R,Panasonic Lumix S1H,Sigma fp,Leica SL (Typ 601)
APS-C:
Leica CL,Leica TL2,Leica TL,Leica T (Typ 701)

AstrHori 18mm f/8 Macro Probe compared

Key specs side by side with the most similar L-Mount lenses.

LensAstrHori 18mm f/8 Macro ProbeAstrHori 18mm f/8 (APS-C) 90° Macro ProbeAstrHori 18mm f/5.6 ShiftAstrHori 18mm f/8 Shift
Focal length18 mm18 mm18 mm18 mm
Max. aperturef/8f/8f/5.6f/8
Weight698 g760 g–164 g
Filter diameter––58 mm58 mm
Min. focus distance47 cm47 cm30 cm34 cm
Length458 mm470 mm36 mm36 mm
Autofocusnononono
Image stabilizationnononono
Open these lenses in the comparison and add more

This lens is also available for

AstrHori 18mm f/8 Macro Probe: FAQ

Does the AstrHori 18mm f/8 Macro Probe have autofocus?

No, the AstrHori 18mm f/8 Macro Probe has no autofocus; you focus it manually.

Does the AstrHori 18mm f/8 Macro Probe have image stabilization?

No, the AstrHori 18mm f/8 Macro Probe has no stabilization of its own. On cameras with in-body image stabilization (IBIS) the image is still stabilized.

How much does the AstrHori 18mm f/8 Macro Probe weigh?

The AstrHori 18mm f/8 Macro Probe weighs 698 g. It is 458 mm long with a diameter of 60 mm.

How close can the AstrHori 18mm f/8 Macro Probe focus?

The minimum focus distance of the AstrHori 18mm f/8 Macro Probe is 47 cm, measured from the sensor plane.

Is the AstrHori 18mm f/8 Macro Probe a full-frame lens?

No, the AstrHori 18mm f/8 Macro Probe is an APS-C lens. On APS-C cameras its field of view equals 27 mm in full-frame terms.
